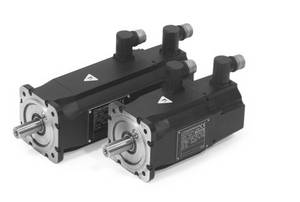

QSY 96

    Specifications

    Motor

    QSY 96 A

    QSY 96 G

    Rated voltage UN

    310 V/308 V

    291 V/290 V

    Rated power output PN

    0.5 kW/0.45 kW

    1.4 kW/1.3 kW

    Rated speed nN

    4500 rpm

    Rated torque MN1)

    1.05 Nm/0.95 Nm

    3.0 Nm/2.7 Nm at 4500 rpm

    Rated current IN1)

    1.1 A/1.0 A

    3.3 A/3.0 A

    Stall torque M01)

    1.5 Nm

    5.2 Nm

    Stall current I01)

    1.5 A

    5.2 A

    Max. speed nmax

    6000 rpm

    Max. torque Mmax2)

    5.5 Nm

    22 Nm

    Max. current Imax2)

    6.3 A

    25.4 A

    Mass m

    3.6 kg

    4.5 kg

    7.2 kg

    8.1 kg

    Rotor inertia J

    1.8 kgcm2

    2.1 kgcm2

    6.3 kgcm2

    6.6 kgcm2

    Brake

    Rated voltage UBr

    Rated current IBr

    Holding torque MBr

    Without

    With

    DC 24 V

    0.5 A

    5.0 Nm

    Without

    With

    DC 24 V

    0.5 A

    5.0 Nm

    ID

    For motor with ERN 1387

    For motor with ECN 1313

    For motor with EQN 1325

    344512-0C

    344512-8C

    344512-5C

    344512-0D

    344512-8D

    344512-5D

    339875-0C

    339875-8C

    339875-5C

    339875-0D

    339875-8D

    339875-5D

    1) At 100 K 2) Max. 200 ms

    Italics: Data for motors with ECN 1313 or EQN 1325 (rated torque reduced by 10 %)
